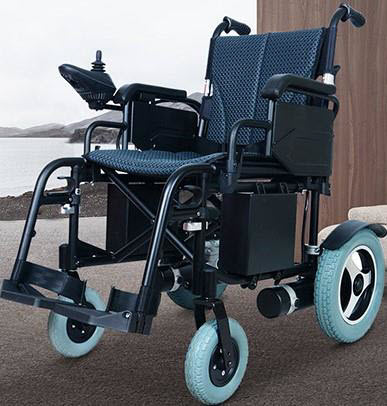

YE235 Lightweight Electric Wheelchair

YE235 Lightweight Electric Wheelchair
 Passenger maximum weight: 135kg
 Flip-up armrest and swing-away Leg rest.
 Equipped with big lead-acid battery 24V 24Ah,
 Brushed motor 350W assembled.
 With a driving range of 20-22Km.
 Net weight: 45.5kg
 Seat Width: 46cm
 Seat Depth: 42.5cm
 Front wheel: 8” PU Solid Tyre
 Rear wheel: 12.5” Aluminum rim
 Brake: Electromagnetic braking system
 Charger: 24V2A, charging time: 6 -8hours
 Controller: factory programmable Joystick
 Ground Clearance: 8cm
 Max slope: 12deg
 Maximum range: 20-22km
 Dimension (Unfold): 99.5 x 66 x 97cm
 Dimension (Folded): 78 x 39 x 77cm

Manufacturer:- YATTLL Industry Co., China
